OVERVIEW
Introducing the Riviera 3 Horse Angle Load Eco, the perfect lightweight solution for horse owners seeking safe and comfortable transportation. This entry level horse float features an angle-load design for three horses, combining practicality and affordability. Built for durability while minimizing weight, it’s easy to tow and maneuver. The Eco model offers all the essential features, making it an excellent choice for those looking for a high-quality float on a budget.
Running gear
✓ 50mm x 50mm Solid Drop Axles
✓ 10-Inch Dual Axle Electric Brakes
✓ Rocker Roller Suspension
✓ Safety Break-Away System
✓ Light Truck Tyres
✓ 15-Inch Rims
✓ 50mm Coupling
external features
✓ Swing-Up Jockey Wheel
✓ Swing-Out Rear Doors
✓ LED Running Lights
✓ Large LED Tail Lights
✓ Recessed Tie-Up Points on Both Sides
✓ 1x PA Door into Horse Area
✓ 1x Fixed Front Window
✓ Easy Lift Tail Gate
structural features
✓ 4mm Hot Dipped Galvanised Chassis
✓ Galvanised RHS Frame
✓ ZINCALUME® Sheeting
✓ One-Piece FRP Sheeted Honeycomb fibreglass flooring
✓ Stainless Steel Fitting and Fasteners
✓ FRP Side Kick Boards

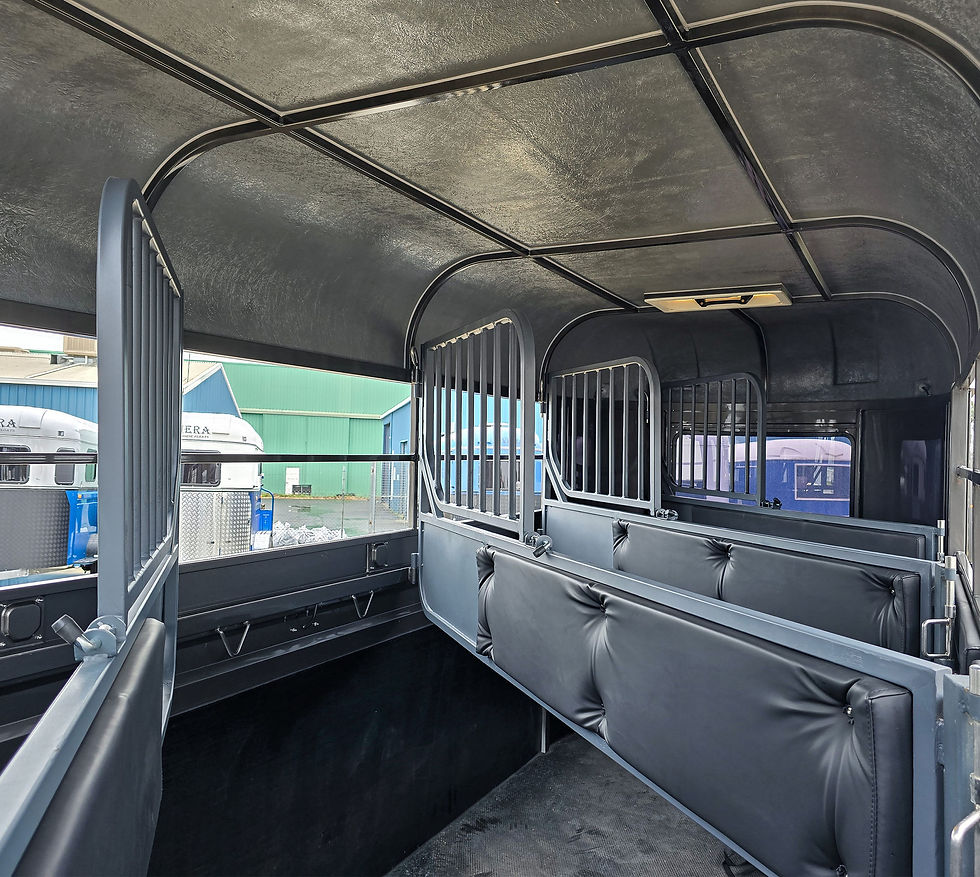

Internal features
✓ Sliding Adjustable Dividers
✓ Padded Dividers
✓ Swingable and Removable Stallion Divider
✓ 1x Large Pop-Up Roof Vent
✓ 10mm Hammer Top Rubber
✓ Honeycomb Fibreglass Kick Boards
✓ Internal LED Lighting
*Tare and Aggregate subject to change.
DIMENSIONS / WEIGHTS
Item
Bay Length
Bay Width
Internal Height
Internal Length
Internal Width
MEASUREMENT
2450 mm
700 mm
2200 mm
4500 mm
1830 mm
Item | Measurement |
|---|---|
Item | Measurement |
|---|---|
Item
Tare
Aggregate
External Height
External Length
External Width
MEASUREMENT
1470 kg
3500 kg
2700 mm
5600 mm
2300 mm
